Summary

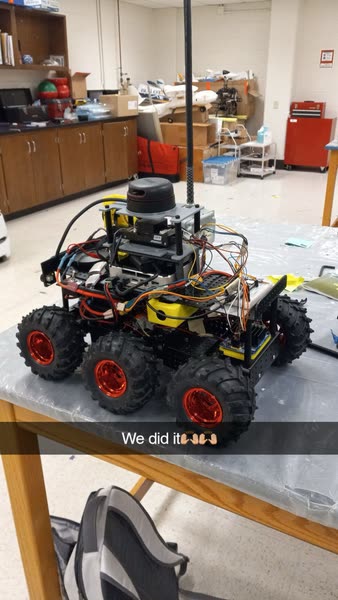

Over two semesters, I led the team responsible for ROS 2 path/motion planning and electronics integration in a three-team project.

Problems and Constraints

We where given a budget of $2000, which was thin. Since my group only needed to develop software, and the previous team in charge of the project had already bough most of the electronics, we where allotted $300. Additionally, ROS2 had just come out as the 2nd semester started, so our sponsor asked us to completely switch from ROS1 to ROS2, causing a lot of finished parts to fail and need refactoring during the transfer. "Success" as a whole was defined by making a vehicle that could qualify for IGVC, though due to the budget constraints, we where not expected to finish during our time there, and the project would be passed on to another group. Success for out group meant, haveing software that could effectively help the vehicle traverse a simulated environment and that would turn the motors in an appropriate manner. Our vehicle had a few sansors; LiDAR, RGB Camera, Depth Camera, and was run on ArduPilot's CubeOrange autopilot. Gazebo was used to simulate the vehicle.

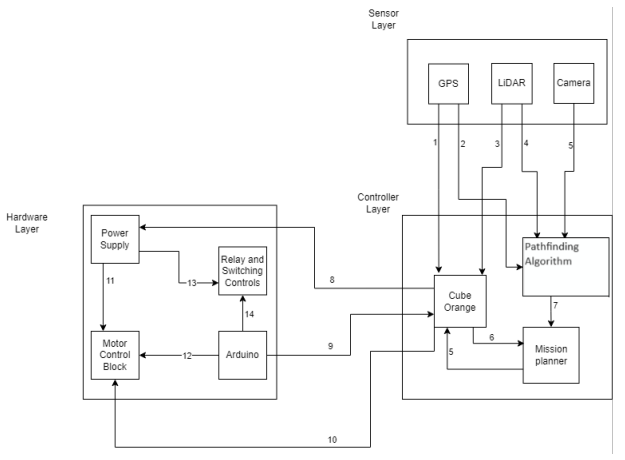

System Overview

Our system is organized into three layers—Sensor, Controller, and Hardware—with clear, safety-first interfaces. GPS, LiDAR, and a camera in the Sensor layer provide global position, obstacle ranges, and visual context. These feeds go to the Controller layer where a ROS 2 path-/motion-planning stack fuses them to build a local map and generate waypoint or velocity setpoints. Setpoints are handed to a Cube Orange autopilot that runs the real-time control loop and state estimation; it enforces limits and failsafes, then converts commands to actuator outputs (PWM/CAN) for the Hardware layer. A Mission Planner ground station supervises configuration, mode changes, and telemetry/logging over the autopilot link. The Hardware layer contains the Motor Control Block (ESCs/drivers), a regulated Power Supply, and Relay & Switching Controls for power-gating and E-stop. An Arduino handles non-critical, discrete I/O (e.g., relays, indicators, limit switches) and reports status upstream. This split keeps heavy perception and planning on ROS 2 while hard real-time actuation stays on the autopilot, yielding a modular, testable stack with deterministic control and independent safety paths.

Software Architecture

Our ROS 2 stack separates perception, navigation, and actuation: sensor drivers publish LiDAR (/scan), camera (/camera/image_raw), and GNSS/IMU (/fix, /imu), while the Cube Orange autopilot provides low-latency odometry and the tf tree (map→odom→base_link). Navigation uses Nav2 with global/local costmaps (obstacle + inflation from LiDAR), a Smac/A* planner that outputs paths, and a DWB or Pure Pursuit controller that produces /cmd_vel; bt_navigator coordinates goals and recoveries. A MAVROS2 bridge converts /cmd_vel and waypoints into MAVLink setpoints for the Cube Orange, which enforces limits and drives the motors (PWM/CAN). A microcontroller bridge exposes relays, E-stop, and limit switches as ROS topics/services. QoS is SensorDataQoS for raw sensor streams and Reliable keep-last for control/odometry, launched via a single bringup file with YAML parameters; safety includes a heartbeat watchdog that zeros /cmd_vel, a dual-path E-stop (topic plus hardware relay), and autopilot geofence/manual override.

Planning and Control Details

Path and motion planning use ROS 2 Nav2. Globally, we run the Smac Planner (A\*/Hybrid-A\*) over a layered costmap (static + obstacle + inflation) to compute a near-optimal, collision-free path in the map frame; the path is smoothed and discretized for downstream tracking. Locally, we use the Dynamic Window Approach via Nav2’s DWB controller: at 20–50 Hz it samples admissible velocity commands (vx, ω) under acceleration and curvature limits, forward-simulates short trajectories on the local costmap, and scores them with weighted critics (obstacle clearance, path alignment, goal heading, velocity) to select /cmd\_vel. Collision checks use the robot footprint against the inflated costmap, and kinematic/dynamic limits ensure feasibility and comfort. The autopilot then tracks these velocity setpoints and applies final safety limits and failsafes.

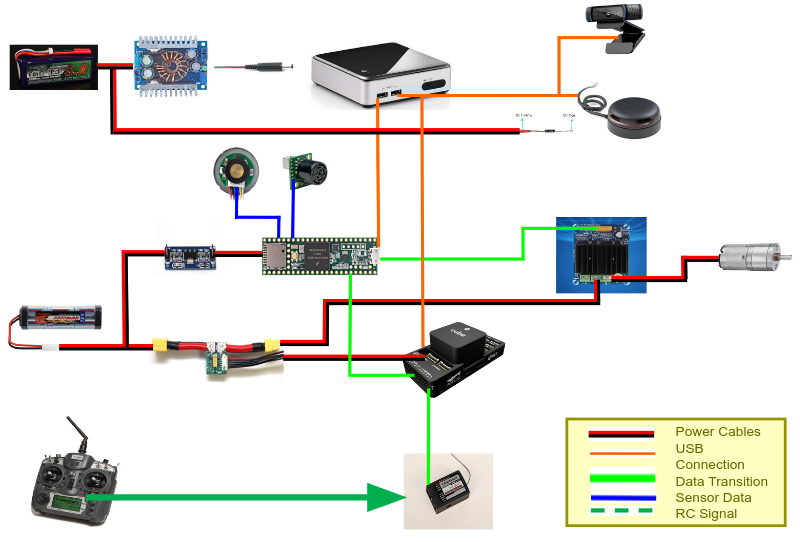

Electronics Integration

The ArduPilot Cube Orange is the real-time controller and I/O hub, driving the motor controllers via PWM (or CAN where available) and exchanging telemetry/commands with the ROS 2 companion through MAVLink over UART. A 2.4 GHz RC receiver (antenna pair mounted externally) feeds the Cube Orange via SBUS/PPM for manual override and safety-critical mode changes. An Arduino handles auxiliary I/O—relay/E-stop coil, status LEDs, and discrete sensors—and reports state over a simple serial link. Power is distributed from the main battery through fused rails and DC-DC regulators (logic 5 V isolated from high-current drives), with a common-ground star point, ferrites on noisy lines, and shielded/twisted signal runs to reduce EMI. A hardware E-stop physically removes drive power independent of software; the autopilot enforces geofence and speed limits, providing a layered fail-safe path.

Testing and Results

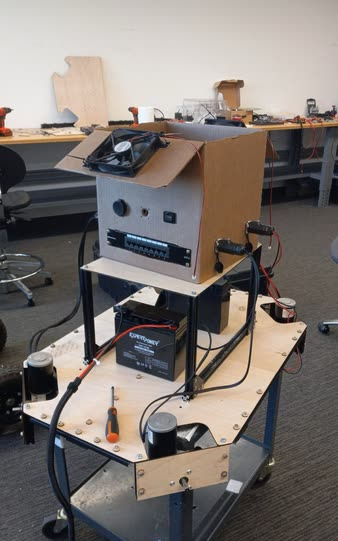

The vehicle frame was not completed in time for full end-to-end field trials, but the vision, motion-planning (Nav2), and electronics subsystems were validated. Using an off-chassis test rig, we performed walk-around tests with the LiDAR, companion computer (ROS 2), Cube Orange autopilot, and motor/driver assembly: live scans drove the global/local planners to produce velocity setpoints, the autopilot translated these into motor commands, and the motors actuated as expected. This hardware-in-the-loop setup simulated on-vehicle operation and verified end-to-end dataflow (sensors → Nav2 → MAVLink/autopilot → motor drivers), timing, and responsiveness. RViz visualization and rosbag2 logs confirmed correct costmap updates and controller behavior under representative scenarios.

References and Notes

• Due to this vehicle being an continually inherited project, me and my group where asked to not publicly release the files.
• I'm happy to give a walkthrough to any recruiter who asks!

Summary

Assisted in developing a model-based mini-vehicle. Evaluation involved getting through various tasks. Many sensors where used, and thier inputs were coordinated to create cohesive movements.

Challenge 1: Manhattan Tile Traversal

Description

Autonomously navigate a known tile-based obstacle course to a specified goal without touching obstacle tiles and while staying inside the workspace. We're given the start, goal, and obstacle positions ahead of time (compile-time inputs), so we had to (1) design and describe the robot, and (2) implement a navigation strategy that works for arbitrary valid layouts. Accuracy mattered more than speed or shortest path

Robot Setup

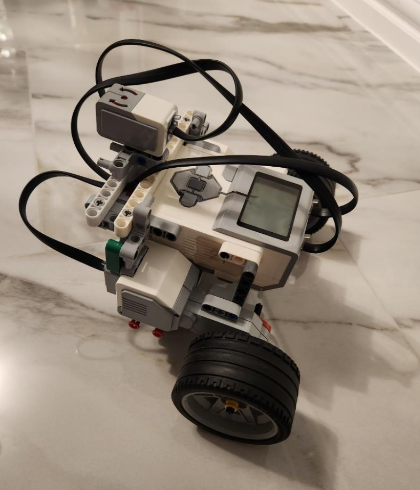

Two side motors provide drive and two rear ball casters add balance. Best-performing wheels were 7 cm diameter × 3.5 cm wide; thinner 8 cm treaded wheels made forward motion turbulent and caused veering. Only sensor is a gyroscope, whose readings were inconsistent, which led to constant on-the-go recalibrations

Approach

We computed a goal-centered Manhattan-distance field on the 10×16 grid (goal = 0; obstacles set very large) using BFS so the resulting “navigation function” has no spurious local minima, then extracted a shortest path with a consistent tie-break (Up → Down → Right → Left) to favor stable vertical motion; on the robot, each step turned to the target heading, drove half a tile, performed a gyroscope check/correction, completed the tile, and rechecked, with directions mapped to specific target angles and runs starting at 0°

Challenge 2: Find the Fire

Description

Design and build a behavior-based fire-alarm robot that, starting from an unknown position in an indoor environment with ~15 cm walls (no exterior openings), explores to locate a “fire” (a lit candle on a distinct half-tile area), then raises an alarm and attempts to extinguish it. We where told to implement a coordinated set of behaviors (wander/search), single-direction wall-following, goal finding/identification, and extinguish using a behavior arbitration scheme such as subsumption or weighted averaging. The had to be able to sense and follow walls (e.g., dual touch-sensor bumpers) and detect the fire; global localization isn’t required since both start and fire locations are initially unknown.

Robot Setup

build with a platform mounting the brick directly above the motors to keep weight centered and leave clearance underneath for the color sensor (positioned ~1 cm above the floor for reliable detection). Two front-mounted touch sensors are tied together by a bumper so light glancing hits still trigger contact; the bumper was iterated for durability while staying loose enough not to bind the sensors. An ultrasonic sensor sits on the left, near the rear, giving space for turns during exploration.

Approach

We developed a behavior-based controller that alternates between wall-following and wandering. Wall-following engages when a left-side wall is detected within ~30 cm by the ultrasonic sensor and tries to maintain ~7 cm standoff; front bumpers override distance-keeping (left hit → turn right, right hit → turn left; both hit → turn based on presence of a left wall). When no left wall is sensed, the robot nudges left and switches to wander. Wandering is “structured random”: go straight briefly, then make a short random left/right turn (≈0–60° via timed turns), repeating until either a wall is found (return to wall-following) or the colored half-tile is detected, which triggers alarm/extinguish. Key tuning solved loops and over-hugging: lowering detection thresholds and balancing randomness with control improved coverage and reliability. When the flame was found, the vehicle's fan would turn on to put it out.

Challenge 3: Play Soccer

Description

The goal of the project is to build a robot that can play a simplified version of soccer using an IR ball and IR seeker sensors. Two teams will play against each other on a field that has 3 zones: two defense zones that only the defensive team's robot can be in and a middle zone that both teams' robot can be in. The goal for each team is to have the ball cross the other team's base line to score a goal. Once a goal is scored, the robots are moved into their team's defense zone and the ball is placed in the center. Then the game is started again with the team that has been scored on getting a 1s head start.

Robot Setup

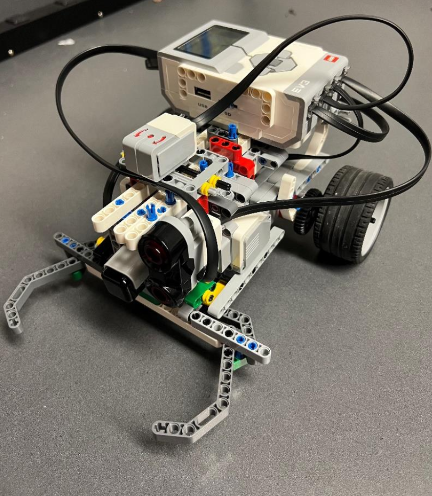

EV3 brick on a detachable top platform; compact footprint ~9″×8.5″×6″; extra stabilizing rods and redundant under-frames for impact resistance; weight shifted rearward for traction. A pincer bumper up front both traps and “kicks” the ball. Sensors: HiTechnic IRSeeker mounted just above the bumper, ultrasonic co-located for frontal range, color sensor ~1 cm above floor to detect the enemy line, and a gyroscope (angles normalized mod 360) for heading.

Approach

A behavior-based controller with (1) ball_search: wander with guarded randomness, avoid walls if ultrasonics ~15 cm, and perform ±20° sweeps after failed turns until either the ball is detected (handoff to aggressive) or the enemy line is sensed (back up + turn); (2) aggressive: if ball is off-axis and weak, re-orient slowly; if centered and close (signal over threshold) and facing the enemy goal, charge; if centered but far, approach slowly to avoid knocking it away; continually fall back to search if the signal drops; (3) charge/dribble burst motions (200–500 ms at ~2000 deg/s); (4) red_turn: on enemy-line detect, back up and choose the safer turn using current gyro heading. To keep sensing responsive during motion, timed motor calls were replaced by short for-loop steps that poll sensors.

References and Notes

• GitHub Link

Summary

Implemented a polynomial version of ALEX (A learned index structure), into DuckDB to speed up indexing in OLAP workloads.

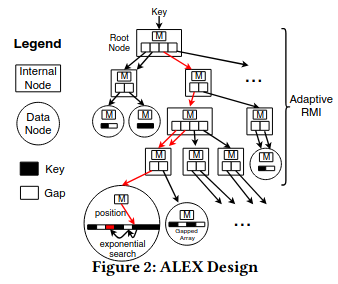

What is ALEX?

ALEX (Adaptive Learned Index) replaces B-tree splitters with tiny models that predict key→position, adapting its layout to data/workload so lookups are fast on smooth or skewed keys while remaining robust in worst cases.

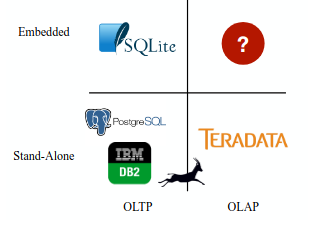

Why DuckDB

DuckDB is an in-process OLAP engine with a clean vectorized pipeline, single-file databases, and an extension API—perfect for testing learned indexes on read-heavy, sorted columns without running a server.

Our Approach

We built an ALEX-style learned index for DuckDB (read-only analytics) that swaps purely linear models for lightweight piecewise polynomial segments, improving accuracy under curvature and shifting key distributions. At query time, the index predicts key→position for point and range filters, then does a tiny local refinement to get exact bounds (for ranges, we predict both ends and scan the narrow slice). The structure is stored alongside the table (models + segment metadata) and rebuilt offline when data change—keeping runtime fast, simple, and deterministic.

Results

On synthetic and TPC-H-like read-only tests, point lookups and narrow ranges saw consistently lower latency than full scans and binary search on the raw column by ~2-5%, with the largest wins on smooth or skewed key distributions(3-7%). Memory overhead stayed modest (tiny models per segment), build time was linear in rows, and we observed graceful degradation on hard cases (e.g., highly irregular keys) thanks to the fallback local search. In short: compact index, fast probes, predictable behavior—well-suited to DuckDB’s analytic workflow. Using Cramer’s rule to fit the polynomials makes training slow and numerically unstable on large datasets. This prototype shows the promise of polynomial learned indexes, but it doesn’t yet scale; switching to QR/SVD or online solvers theoretically should improve performance, but we did not have the time needed to test this.

References and Notes

• DuckDB Paper
• ALEX Paper
• Github Link

Summary

A modern fragrance discovery site where users can browse brands, explore note groups, and search fragrances with fast, typed endpoints. The project is "Full-Stack"; Next.js Frontend, Django-API, PostgreSQL database. A lightweight RAG chatbot, powered by youtube captions, makes searching easier.

Frontend

The frontend uses Next.js (App Router) with React and JavaScript for a fast, accessible SPA/SSR hybrid. Pages are routed by slug (e.g., brands, notes, fragrance detail), with incremental/static rendering where it helps performance. Styling favors a modern, component-driven approach (responsive grid cards, clean typography, and dark-mode support via next-themes). Data access is via fetch calls to the external API, keeping UI code framework-pure and portable. Client state is kept minimal; most screen data comes from server-side or on-demand fetches to keep hydration light and UX snappy. The result is a crisp catalog experience that scales without coupling UI to database details.

Backend

The backend is a separate API service to keep concerns clean and deployment flexible. It exposes typed, versioned endpoints for brands, fragrances, and notes (list, detail, search, and filters), with predictable pagination and slug-based lookups. The API handles input validation, error shaping, and CORS for the frontend, and leaves room for rate limits and caching. A small utilities layer (aromarch-db-utils) supports tasks like seeding, data backfills, and one-off scripts. This separation means the API can scale (and be tested) independently and allows future swaps—e.g., alternate auth, search providers, or specialized workers—without touching the UI.

Database

Built on PostgreSQL with pgvector for semantic search, the schema centers on `brands`, `fragrances`, `notes`, and a join table `fragrance_notes` to model the many-to-many relationship between scents and notes. Each entity has a stable `slug`, strict foreign keys, and unique constraints; common lookups (by brand, slug, or ID) are backed by B-tree indexes to keep catalog queries fast. Descriptive text (e.g., fragrance summaries, brand bios, note-group blurbs) is embedded and stored in `vector` columns (dimension matched to the embedding model), enabling nearest-neighbor queries via pgvector to power “similar fragrances” and precise RAG retrieval. For scale, we use pgvector’s ANN indexing (e.g., HNSW/IVF-Flat depending on version and dataset size) to keep latency low, while the relational core stays normalized and migration-friendly so future features—seasonality tags, longevity/sillage, user lists—drop in without schema churn.

RAG Chatbot

The chatbot blends Aromarch’s own information (brands, fragrances, note-group blurbs) with a set of fragrance YouTubers. A script pulls each channel’s captions/transcripts, cleans them, splits them into sentence/paragraph-aware chunks with slight overlap, and embeds those chunks; vectors plus rich metadata (channel, video, timestamp, date, language, topics) are stored in PostgreSQL with pgvector. At question time, Aromarch runs hybrid retrieval—vector similarity (ANN via pgvector) plus lightweight keyword filtering, which can be optionally scoped by channel or recency, then re-ranks the top passages and assembles an answer with inline citations (video title + timestamp) so users can jump to sources. The pipeline deduplicates near-identical clips, respects a whitelist of channels, and refreshes incrementally so new uploads become searchable without full reindexing. Providers for embeddings/LLMs are pluggable, making it easy to switch between local and hosted setups as the project scales.

References and Notes

This project is still being developed incrimentally and will be hosted once MVP is complete
